Introduction
Hemodynamic monitoring is a critical component in managing patients with cardiovascular conditions. Accurate, real-time assessment of cardiac function is paramount to optimizing treatment and improving patient outcomes. The Inca® Pressure Volume Loop (PV Loop) System represents a significant advancement in this field, providing clinicians with a powerful tool for evaluating cardiac function with unparalleled precision. This article explores the technological innovations behind the Inca® PV Loop System, its clinical applications, and its impact on understanding hemodynamics in various medical settings.
1. The Importance of Hemodynamic Monitoring
Hemodynamic monitoring refers to the measurement of blood pressure and flow within the cardiovascular system, offering vital insights into the function and efficiency of the heart. Traditionally, clinicians have relied on methods like echocardiography and invasive catheterization to gather hemodynamic data. While these techniques are effective, they often come with limitations, such as the inability to provide continuous real-time data and limited data accuracy in certain settings.
2. Introduction to the Inca® PV Loop System

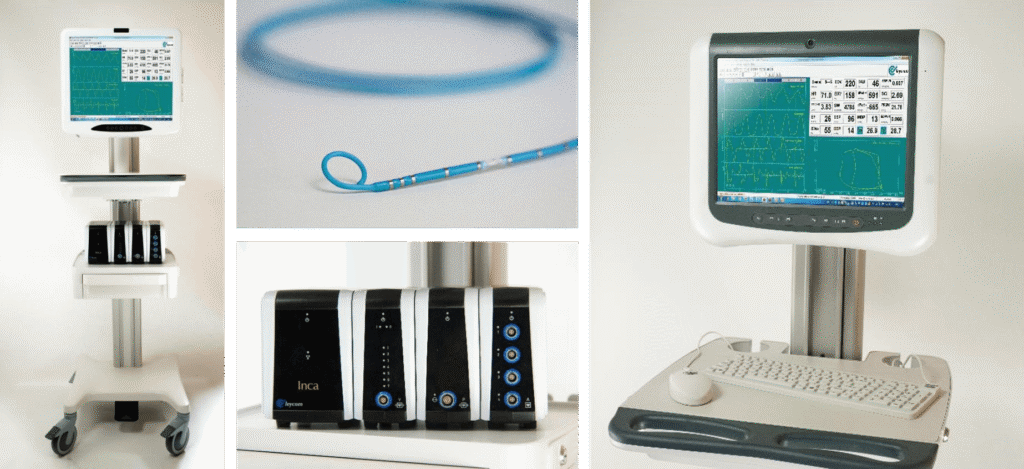

CD Leycom’s Inca® PV Loop System is a sophisticated device designed to measure pressure-volume relationships within the heart. This system captures the dynamic interplay between pressure and volume in the left or right ventricle throughout the cardiac cycle, generating PV loops that are essential for assessing cardiac performance. The Inca® PV Loop System is celebrated for its ability to provide real-time data, allowing clinicians to make immediate and informed decisions regarding patient care.
3. How the Inca® PV Loop System Works
The Inca® Pressure Volume Loop System operates by processing and displaying a series of physiologic signals obtained from a CD Leycom PV loop catheter, which is delivered to a patient’s heart. These components work together to measure intracardiac pressure and volume simultaneously. The system then generates a graphical representation—known as a PV loop—that illustrates the relationship between these two parameters over time.
The PV loop is a critical diagnostic tool because it allows for the analysis of various cardiac functions, including:
- Stroke volume: The amount of blood ejected from the heart during each beat.
- End-systolic pressure-volume relationship (ESPVR): A measure of the heart’s contractile function.
- End-diastolic pressure-volume relationship (EDPVR): An indicator of ventricular compliance.
- Stroke Work (SW): A measure of mechanical work (energy) performed by the ventricle to eject a volume of blood
4. Clinical Applications of the Inca® PV Loop System
The Inca® PV Loop System has a wide range of applications in clinical settings, particularly in cardiology and critical care. Some of the key applications include:
- Heart Failure Management: The system helps in assessing the severity of heart failure by providing detailed information on ventricular function, enabling tailored therapeutic interventions.
- Cardiac Surgery: Surgeons can use the system intraoperatively to monitor cardiac function and make real-time adjustments during procedures such as valve replacement or coronary artery bypass grafting (CABG).
- Medical Device Product Efficacy and Drug Development: The Inca® PV Loop System is invaluable in the research setting, where it is used to study the effects of new pharmacological agents and medical device efficacy.
5. Advantages of the Inca® PV Loop System
The Inca® Pressure Volume Loop System offers several advantages over traditional hemodynamic monitoring methods:
- Real-Time Data Acquisition: Unlike other monitoring techniques, the Inca® PV Loop System provides continuous real-time data, allowing for immediate clinical decision-making.
- High Precision: The system’s advanced high-fidelity sensors deliver highly accurate measurements, reducing the likelihood of errors and improving patient outcomes.
- Comprehensive Analysis: The ability to analyze multiple aspects of cardiac function from a single set of PV loops enables a more comprehensive understanding of the heart’s performance.
- Minimally Invasive: While the system does involve catheterization, it is less invasive compared to other methods that require multiple procedures for similar data collection.
6. The Role of PV Loops in Cardiac Function Assessment
PV loops are essential for understanding the mechanical aspects of heart function. Each loop generated by the Inca® PV Loop System represents a full cardiac cycle, from the filling phase (diastole) to the ejection phase (systole). By analyzing the shape and position of these loops, clinicians can gain insights into:
- Contractility: How effectively the heart muscle contracts.
- Afterload: The resistance the heart must overcome to eject blood.
- Preload: The initial stretching of the cardiac muscle prior to contraction.
- Compliance: The heart’s ability to stretch and accommodate different volumes of blood.
7. Enhancing the Understanding of Hemodynamics
The Inca® PV Loop System significantly enhances the understanding of hemodynamics by offering a detailed view of the pressure-volume relationship in the heart. This level of detail allows for the identification of subtle changes in cardiac function that may not be detectable with other monitoring techniques. For instance, early-stage heart failure or diastolic dysfunction can be identified through changes in the shape of the PV loop, enabling early intervention.
8. Case Studies and Clinical Evidence
Several case studies and peer-reviewed publications have demonstrated the efficacy of the Inca® PV Loop System in improving patient outcomes. For example, in patients undergoing cardiac surgery, real-time monitoring with the Inca® PV Loop System has been shown to reduce the incidence of perioperative complications by enabling more precise adjustments to surgical technique and postoperative care.
In another study, the system was used to monitor patients with heart failure, leading to optimized medication regimens based on the detailed hemodynamic data provided by the PV loops. These studies highlight the system’s potential to revolutionize the way cardiac function is monitored and managed in clinical practice.
9. Technological Innovations Behind the Inca® PV Loop System
The Inca® Pressure Volume Loop System incorporates several technological innovations that set it apart from other hemodynamic monitoring systems. These include:
- High-Fidelity Sensors: The system uses advanced sensors capable of detecting minute changes in pressure and volume with exceptional accuracy.
- User-Friendly Interface: The system’s interface is designed for ease of use, allowing clinicians to quickly acquire, calibrate, and interpret data to make informed decisions.
- Integration with Other Systems: The Inca® PV Loop System allows for the integration of other auxiliary analog signals, which are time-synced with the PV loops, providing a comprehensive view of the patient’s cardiovascular status.
10. Challenges and Considerations
Despite its many advantages, the Inca® PV Loop System is not without challenges. One of the primary considerations is the learning curve associated with interpreting PV loops. While the system is designed to be user-friendly, understanding the nuances of PV loop analysis requires specialized training.
Another challenge is the invasiveness of the procedure. Although less invasive than some alternatives, the use of catheters can still pose risks, particularly in patients with complex medical conditions. Clinicians must weigh these risks against the potential benefits when deciding to use the Inca® PV Loop System.
11. Future Directions in Hemodynamic Monitoring
The future of hemodynamic monitoring is likely to be shaped by further advancements in technologies like the Inca® PV Loop System. Ongoing research is focused on enhancing the system’s capabilities, such as improving sensor accuracy, reducing invasiveness, and integrating artificial intelligence to assist in data interpretation.
There is also potential for the Inca® PV Loop System to be used in a broader range of clinical settings, including outpatient care and remote monitoring, which would expand its utility and accessibility.
12. Conclusion
The Inca® Pressure Volume Loop System represents a significant leap forward in the field of hemodynamic monitoring. By enabling precise, real-time assessment of cardiac function, the system enhances clinicians’ understanding of hemodynamics, ultimately leading to better patient outcomes. As technology continues to evolve, the Inca® PV Loop System is poised to play an increasingly important role in the management of cardiovascular conditions, from acute care to chronic disease management.
FAQs
1. What is the Inca® PV Loop System used for?
The Inca® PV Loop System is used to monitor and assess cardiac function in real-time by measuring the pressure-volume relationship within the heart. It is particularly valuable in managing heart failure, guiding cardiac surgery, and conducting cardiovascular research.
2. How does the Inca® PV Loop System improve patient outcomes?
The system provides precise, real-time data on cardiac function, allowing clinicians to make immediate, informed decisions. This leads to more tailored treatments, better management of surgical procedures, and optimized therapeutic interventions, all of which contribute to improved patient outcomes.
3. Is the Inca® PV Loop System invasive?
Yes, the system requires the insertion of catheters to measure intracardiac pressure and volume. However, it is considered less invasive compared to some other hemodynamic monitoring techniques and provides more comprehensive data.
4. What are PV loops, and why are they important?
PV loops are graphical representations of the relationship between pressure and volume in the left ventricle during a cardiac cycle. They are crucial for understanding various aspects of heart function, including contractility, afterload, preload, and compliance.
5. Can the Inca® PV Loop System be used in outpatient settings?
Currently, the system is primarily used in hospital settings due to the need for catheterization. However, future advancements may allow for its application in outpatient and remote monitoring scenarios.
